Electric insect killers / 2026 collection
8FE Series
Double-grid UV insect killers
A vertical insect-killer range with two UV tubes, a double-layer electric grid and model options from 8 W to 30 W.
Power8–30 W
ApplicationIndoor
- 365 nm FSL UV lamps
- Double-layer electric grid
- Direct-contact lamp bases
- Removable collection tray
THE PRODUCT DETAILS
Designed around your needs.
Choose a model for your enquiry.
Our team can confirm the configuration for your market.
At a glance
- Product family
- 8FE Series
- Power
- 8–30 W
- Dimensions
- Varies by model
- Application
- Indoor
- Models / options
- 5
Variant-specific dimensions and packing are listed below. Ask our team for lamp options and model-specific instructions.
Request model-specific documents ↗Specifications & packing.
Model dimensions and standard packing. Confirm the final configuration with our sales team.

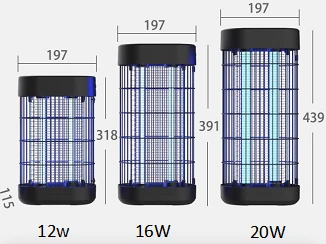

| Model | Power | Product size | Gift box | Carton size | Units / carton | 20′ GP | 40′ HQ |
|---|---|---|---|---|---|---|---|
| IKI-808FE | 8 W | 197 × 115 × 240 mm | 210 × 130 × 265 mm | 440 × 550 × 285 mm | 8 | 3,100 | 7,520 |
| IKI-812FE | 12 W | 197 × 115 × 318 mm | 210 × 130 × 340 mm | 440 × 550 × 360 mm | 8 | 2,460 | 5,980 |
| IKI-816FE | 16 W | 197 × 115 × 391 mm | 210 × 130 × 410 mm | 440 × 550 × 430 mm | 8 | 2,080 | 5,060 |
| IKI-820FE | 20 W | 197 × 115 × 439 mm | 210 × 130 × 445 mm | 440 × 550 × 465 mm | 8 | 1,900 | 4,600 |
| IKI-830FE | 30 W | 197 × 120 × 500 mm | 210 × 125 × 521 mm | 520 × 430 × 530 mm | 8 | 1,150 | 2,800 |
Dimensions in millimetres. Container figures are units per container. Scroll horizontally to view all columns.
Model technical details.
Open a model to check its available specifications. Confirm the configuration for your destination market with our team.
IKI-808FE
- Input voltage
- AC100-120V/AC220-240V
- Frequency
- 50/60Hz
- Plug configuration
- European 2 round pins plug.etc
- Light source
- FSL UV 4W tube *2
- Rated lamp life
- 6,000 hours
- Coverage reference
- 50 m²
IKI-812FE
- Input voltage
- AC100-120V/AC220-240V
- Frequency
- 50/60Hz
- Plug configuration
- European 2 round pins plug.etc
- Light source
- FSL UV 6W tube *2
- Rated lamp life
- 6,000 hours
- Coverage reference
- 60 m²
IKI-816FE
- Input voltage
- AC100-120V/AC220-240V
- Frequency
- 50/60Hz
- Plug configuration
- European 2 round pins plug.etc
- Light source
- FSL UV 8W tube *2
- Rated lamp life
- 6,000 hours
- Coverage reference
- 70 m²
IKI-820FE
- Input voltage
- AC100-120V/AC220-240V
- Frequency
- 50/60Hz
- Plug configuration
- European 2 round pins plug.etc
- Light source
- FSL UV 10W tube *2
- Rated lamp life
- 6,000 hours
- Coverage reference
- 80 m²
IKI-830FE
- Input voltage
- AC100-120V/AC220-240V
- Frequency
- 50/60Hz
- Plug configuration
- European 2 round pins plug.etc
- Light source
- FSL UV 15W tube *2
- Rated lamp life
- 6,000 hours
- Coverage reference
- 90 m²
